A-62325-1/8K (HU) Zárócsavar, kúpos menettel
(HU) Zárócsavar, kúpos menettel - INOX
It is possible to record custom requests on the order summary page.
| Kivitel: | záró |
|---|---|
| Material: | Stainless steel |
| Material seals: | Without seal |
| Medium: | Compressed air, liquids |
| Operating pressure: | 0…140 bar |
| Port size / Connection: | R 1/8" |
| Pressure range: | 0…140 bar |
| Temperature range: | -110°C…+300°C |
A-62325-1/8K
(HU) Zárócsavar, kúpos menettel - INOX
| Product number | Port size / Connection | Options |
|---|

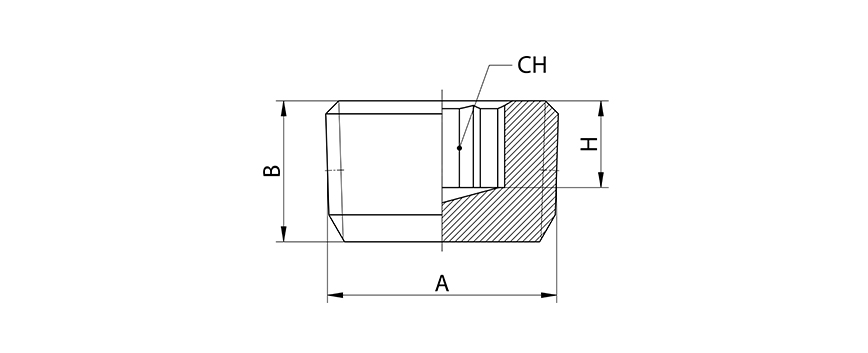

| Type number | Port size A | B | H | CH |
|---|---|---|---|---|
| A-62325-1/8K | R 1/8" | 7,5 | 5 | 5 |
| A-62325-1/4K | R 1/4" | 10 | 7 | 6 |
| A-62325-3/8K | R 3/8" | 11 | 7 | 8 |
| A-62325-1/2K | R 1/2" | 13 | 8 | 10 |
