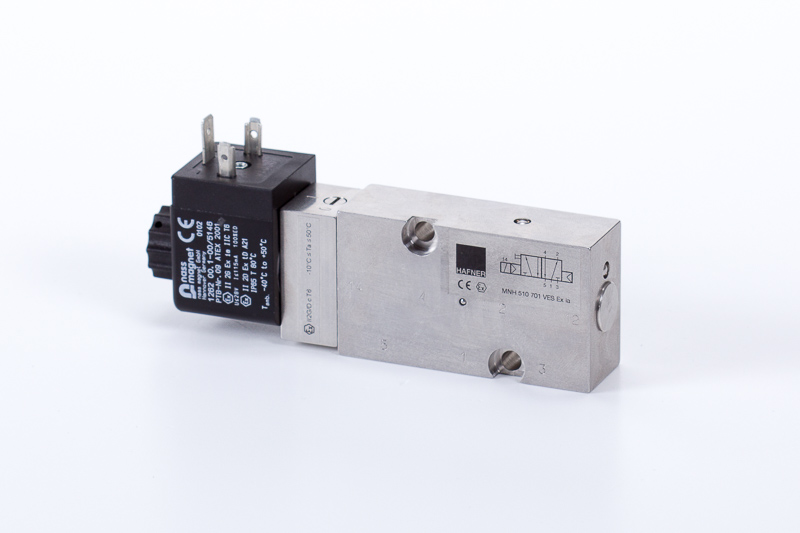

MNH 510 701 VES EX IA MNH 510 701 VES EX IA
MNH 510 701 VES EX IA
Coil and electric connector is not included
It is possible to record custom requests on the order summary page.
| ATEX zone: | II 2 G Ex h IIC T6 Gb -10°C ≤Ta ≤ +50°C | II 2 D Ex h IIIC |
|---|---|
| Actuation: | Electrically actuated |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 1250 l/min |
| Function: | Monostable |
| Ignition protection type: | Ex ia |
| Material body: | Stainless steel |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | 2…8 bar |
| Port orientation: | On two sides |
| Port size / Connection: | G 1/4" |
| Power consumption: | 3 W / 5 VA |
| Switching time: | 50 ms | 6 bar, +20°C |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/2-ways |
MNH 510 701 VES EX IA
MNH 510 701 VES EX IA
| Product number | Air flow rate (P1=6 bar, ΔP=1 bar) | Function | Operating pressure | Port size / Connection | Power consumption | Options |
|---|
