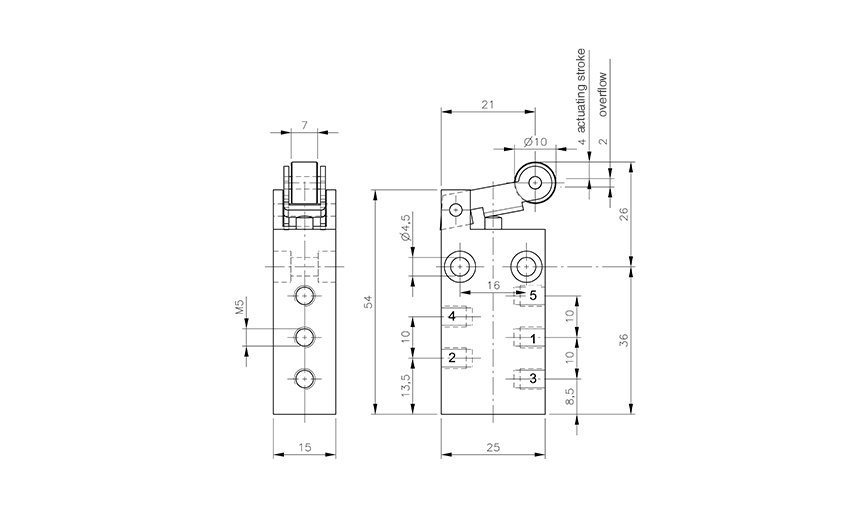

BR 511 201 (HU) 5/2-es görgőkaros szelep
(HU) 5/2-es görgőkaros szelep - M5
It is possible to record custom requests on the order summary page.
| Actuating force: | 9 N |
|---|---|
| Actuation: | Mechanically actuated |
| Air flow rate (P1=6 bar, ΔP=1 bar): | 125 l/min |
| Function: | Monostable |
| Material body: | Aluminum |
| Medium: | Compressed air |
| Mounting type: | In-line |
| Operating pressure: | -0,9...10 bar |
| Port orientation: | On two sides |
| Port size / Connection: | M5 |
| Temperature range: | -10°C…+50°C |
| Ways: | 5/2-ways |
BR 511 201
(HU) 5/2-es görgőkaros szelep - M5
| Product number | Actuating force | Air flow rate (P1=6 bar, ΔP=1 bar) | Function | Operating pressure | Port orientation | Port size / Connection | Options |
|---|
